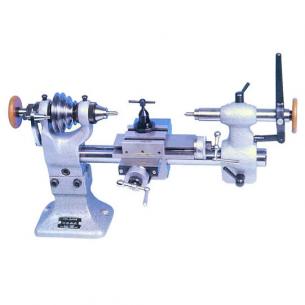

主機配上電機可進行車削、鉆孔、攻絲等加工、可車棒料直徑為?0.3mm-?8mm
主機凈重4kg
中心高 47mm
頭、尾架距離100mm
拖板縱橫向量大行程45mm
主軸每分鐘轉速1680，2800，4660轉/分
主軸徑跳≤0.01
Equipping with the electric machine, the basic machine for preciseon lathe can make turning, boring and tapping with the bar diameter of ?0.3-?8mm.
Net weight of the basic machine-4kg.
Center height ----47mm.
Top length----100mm
Length of the saddle----45mm
Rotate speed of principal spindle----1680,2800,4660revs C6104 整機
C6104—Basic Machine

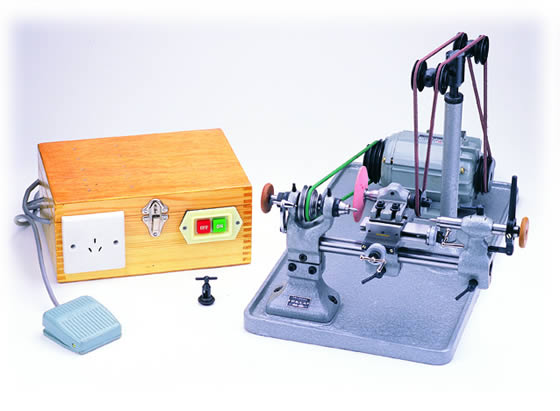

整機除具備主機車削、鉆孔、攻絲等加工功能外，可進行磨削加工（可磨外園、內孔）。裝上銑頭可進行銑削加工，借助皮帶輪60等分孔，可進行銑削多邊形及銑齒加工。
電機可配用三相電機或單相電機作動力。（功率120W）整機凈重28kg、毛重35kg、裝箱外形尺寸620*380*370（mm)
Besides turning, boring, tapping, the basic machine can make grinding processing. Milling can be made by means of the milling head. The polygon and gears can be means of the belt pulley.
Three-phase or mono-phase electric machine are necessary for the power of the basic machine.(120W)Net weight of the complete machine is 28kg, and gross weight is 35kg. Dimensions for packing----620*380*370mm. C6104 打孔整機

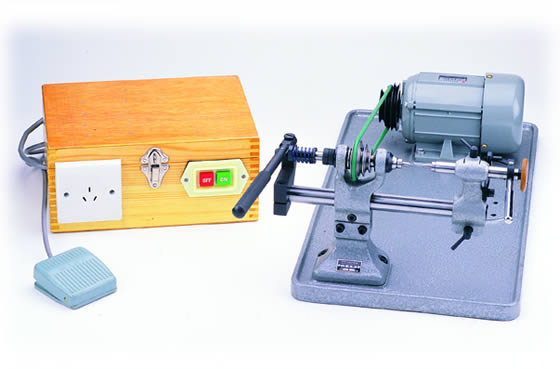

C6104-Basic Machine for Stiletto
打孔整機是專門為大批量打小孔的用戶設計制造的產品，其特點打孔速度快，精度高。現已被磁性材料打孔，制筆等行業廣泛應用。打孔范圍?0.2mm-?5mm。
Basic machine for stiletto is cesigned and manufactured for those customers who are need of small opening. It has good quality with fast speed and high precision. Now it's,widely used in magnetism material stiletto,etc. Stiletto range----?0.2mm-5mm。 C6104 手刀架
C6104-Manual Tool Hoder
用于手持車刀、支承車削加工
Used for manually holding the turning
tools and supporting the tuniing processing.
 滾動刀架
Roll tool holder
 刀架
Tool Holder
 平臺刀架
Flat tool holder
C6104 過橋架
C6104-Rack
用于磨頭、銑頭動力傳動，可選配2650mm彈力帶
Provide electric power with the grinding head and milling head.
Spring-belt 2650mm could be equipped with it. C6104 拖板
C6104—Saddle
購置多付拖板可分別安裝磨頭、銑頭、刀架，便于對刀準確，方便使用。
If customer purchase few sets of saddles, grounding head,milling head,tool holder can be installed with them respectivelyformore convenience. C6104 四方刀架拖板
C6104—Saddle for Squard Tool Holder
可裝夾四把刀、可旋轉調換
Efquipped with 4 tools,transposing reelingly C6104 磨頭
C6104-GROUNDING HEAD
用于磨削加工
Used for grinding processing C6104 銑頭
C6104-Milling Head
用于銑削加工
Used for milling processing
C6104 精密車床彈簧夾頭 C6104-Collect for Precision Lathe
彈簧夾頭專配C6104精密車床使用?？讖揭?guī)格?0.3mm-?6.5mm每隔0.1mm-檔，共計63種規格。孔徑規格?6.6mm-?8mm每隔0.2mm-檔，共計8種規格。
孔徑規格?9mm-?14mm每隔1.0mm-檔，共計6種規格。 The collets are necessary for the multi-functional precision lathe C6104.
The size of the boring?0.3mm-6.5mm with the graduations of 0.1mm,63 sizes in total.
The size of the boring?6.6mm-?8mm with the graduations of 0.2mm,8 sizes in total.
The size of the boring?9mm-?14mm with the graduations of 0.1mm,6 sizes in total.
 尖頂針  活動頂針
Tine Thimble Movable Thimble
凹頂針
Hollow Thimble
 C6104 砂輪軸  C6104 銑刀軸
C6104-Grinding Wheel Spindle C6104-Milling Cutter Spindle
 C6104 內夾  C6104外夾
C6104-Inner Collet C6104-Outer Collet
 C6104 花盤  C6104 三爪卡盤
C6104-Disk Chuck C6104-Cam-ring Chuck

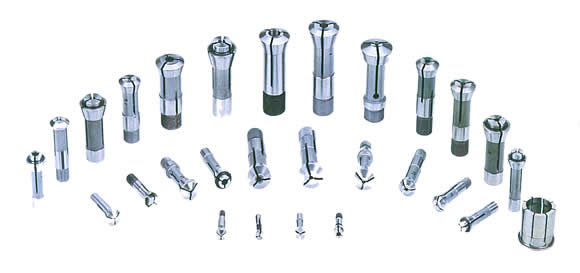

各種類型自動車彈簧夾頭
ALL KINDS OF COLLETS FOR AUTOMATICAL LATHES
承制各類特殊型號彈簧夾頭
This factory handles with the collets of all specific model and size
|
